embodyne.ai magnetic crawler robots bring robotic surface preparation to steel assets including ship hulls, cargo holds, storage tanks and wind-turbine towers. The range covers UHP hydroblasting, abrasive blasting, mechanical preparation, cleaning, coating and support equipment. For wall-climbing work, the surface preparation robot range supports hull blasting, water jetting and tank cleaning.
Magnetic Crawler Robots
Technical specifications and application information for the embodyne.ai equipment range
| Product & Model | Product Group | Key Specifications | Industries | |
|---|---|---|---|---|
 | UHP Hydroblasting Crawler — M-06 Surface preparation of large steel surfaces: ship hulls in dry dock or alongside, storage tanks and offshore structures. | uhp-hydroblasting | Max operating pressure: 3000 bar Power: 1.5 kW | Ship hull & dry dock, Storage tanks |

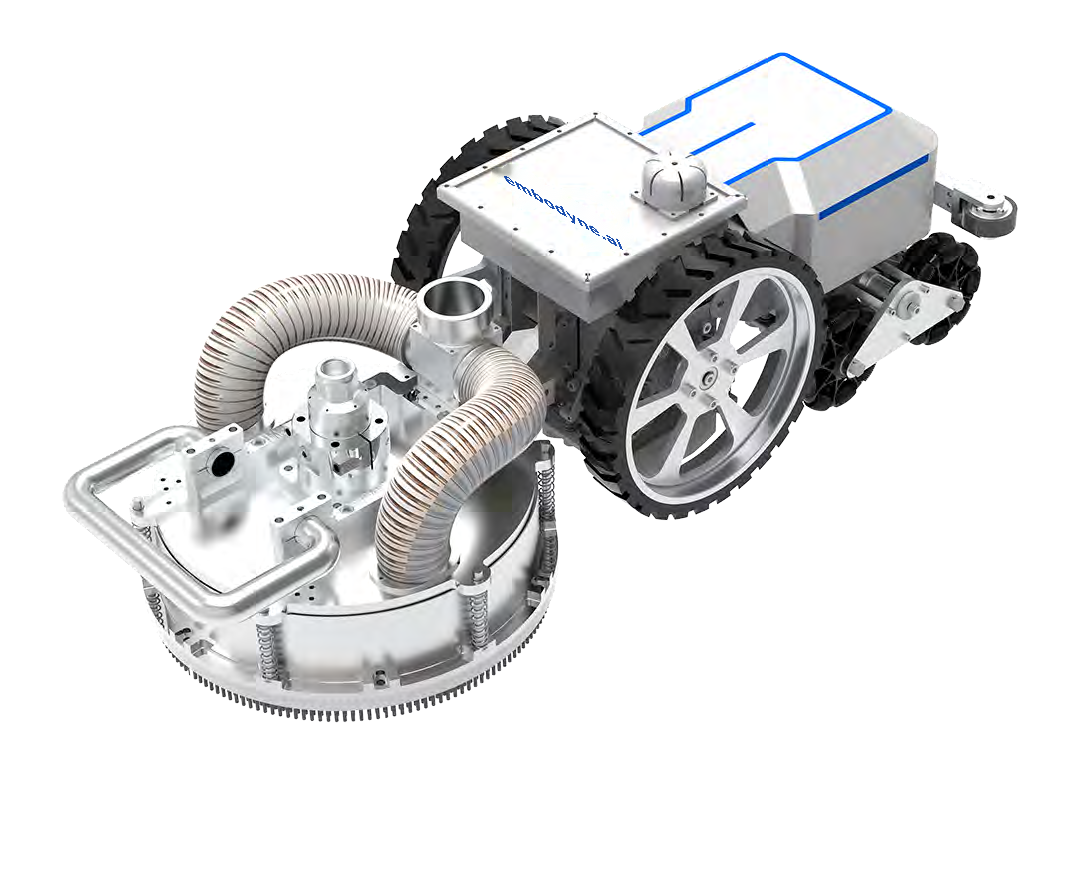

 | Flat-Bottom UHP Hydroblasting Crawler — M-03 PRO Ship-bottom and narrow-lane hydroblasting alongside the M-06. | uhp-hydroblasting | Max pressure: 2800 bar Power: 1.5 kW | Ship hull & dry dock |

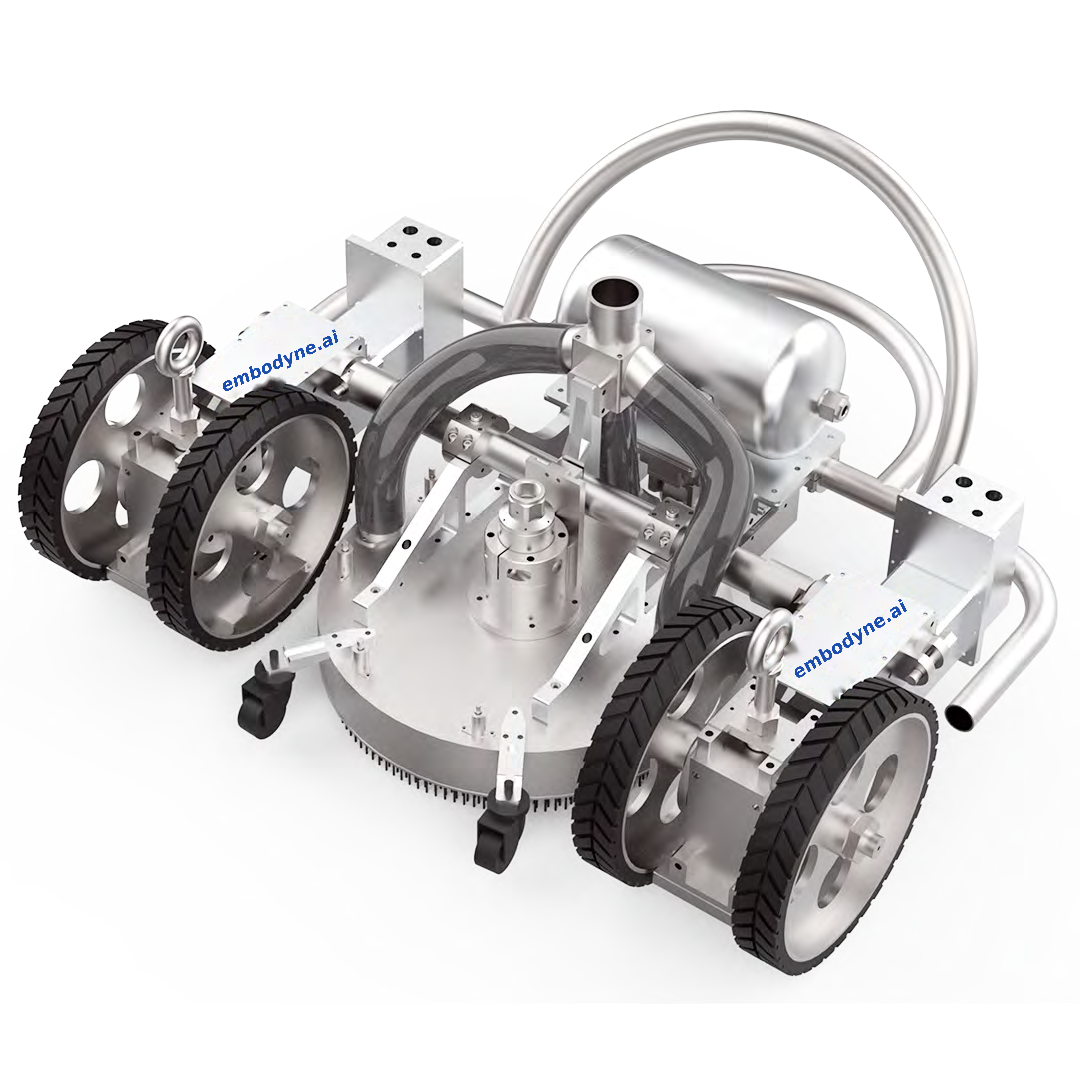

 | Explosion-Proof UHP Hydroblasting Crawler — MR-EX-03 Rust and paint removal in storage tanks of 500 m³ and above, without scaffolding. | uhp-hydroblasting | Max operating pressure: 2800 bar Max speed: 16 m/min | Storage tanks |

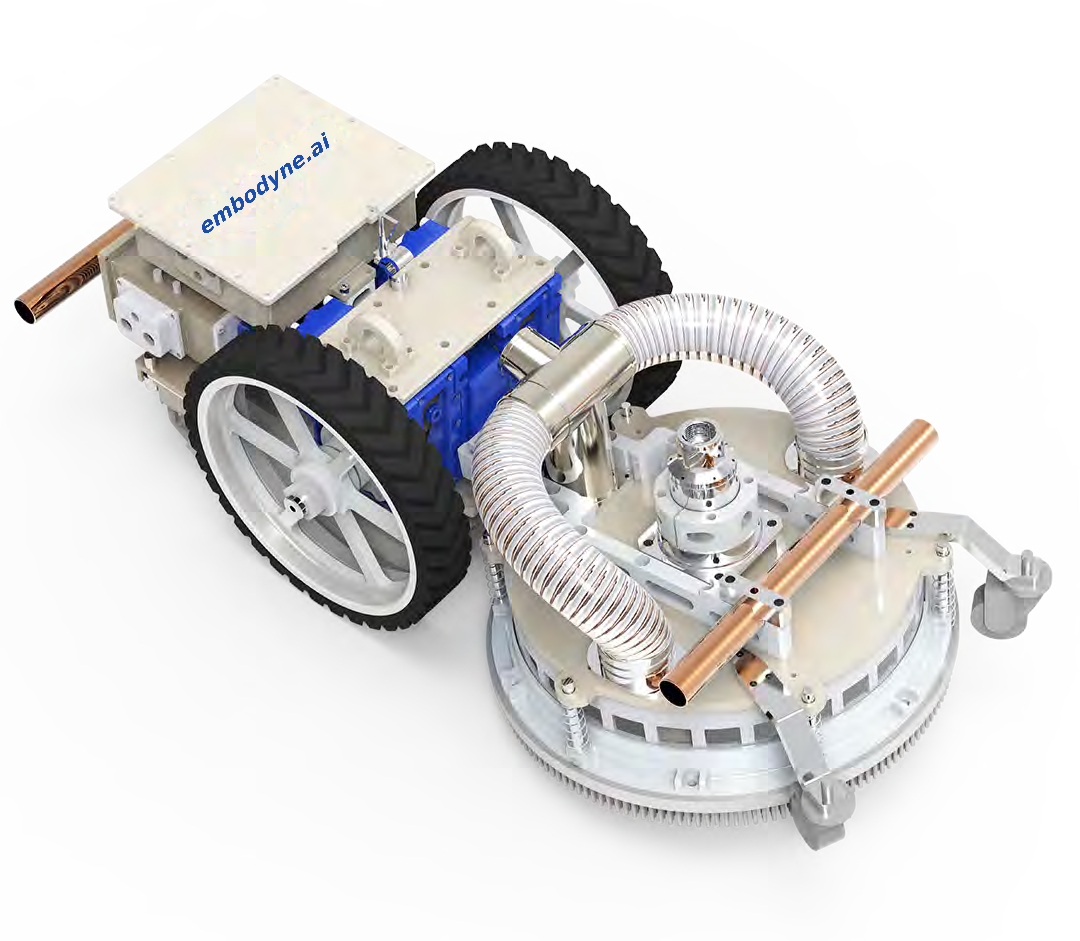

 | Compact UHP Hydroblasting Crawler — MR-03 Compact unit for tank surfaces, edge areas and narrow spaces. | uhp-hydroblasting | Max operating pressure: 2800 bar Max speed: 12 m/min | Storage tanks |

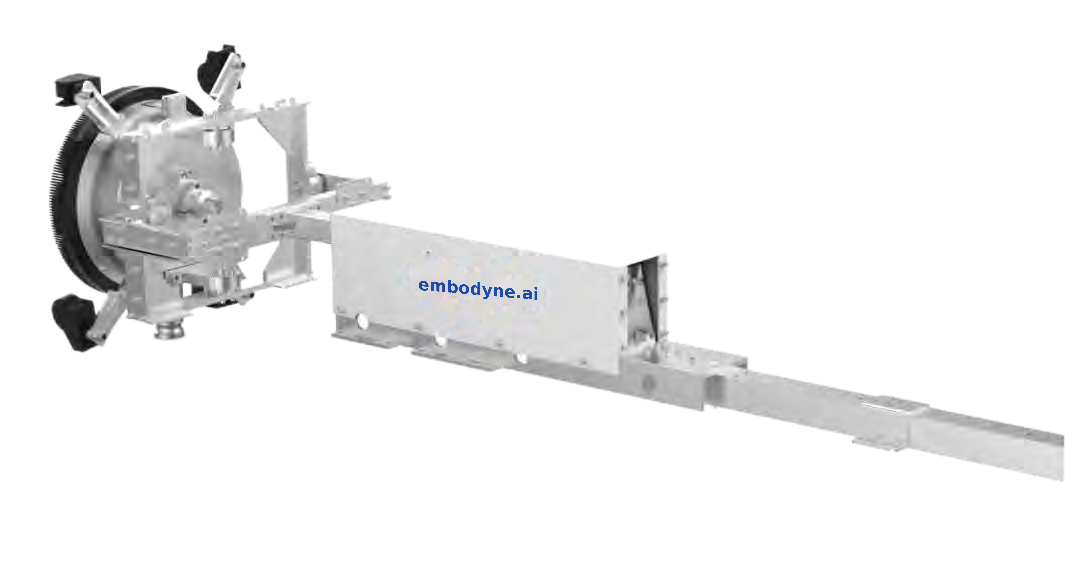

 | Semi-Automatic UHP Hydroblasting Unit — MH-01 PRO Mounts on an aerial work platform for vertical or inclined hull surfaces and spot blasting. | uhp-hydroblasting | Max operating pressure: 2800 bar Telescopic stroke: 340 mm | Ship hull & dry dock |

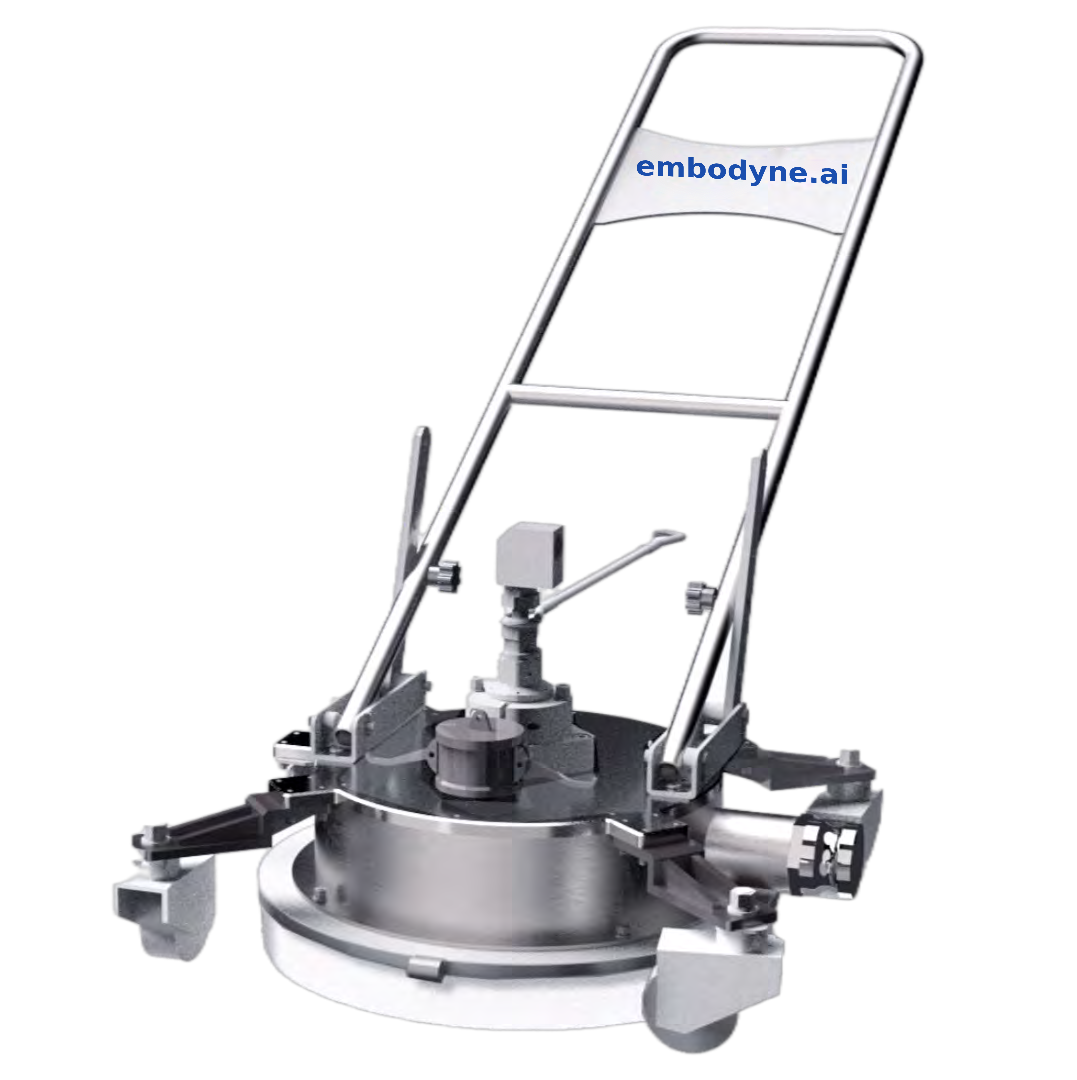

 | Deck UHP Hydroblasting Cart — MH-03 Push-pull unit for ship decks and deck edges. | uhp-hydroblasting | Max operating pressure: 2800 bar Handrail adjustment: 370–1170 mm | Ship hull & dry dock |

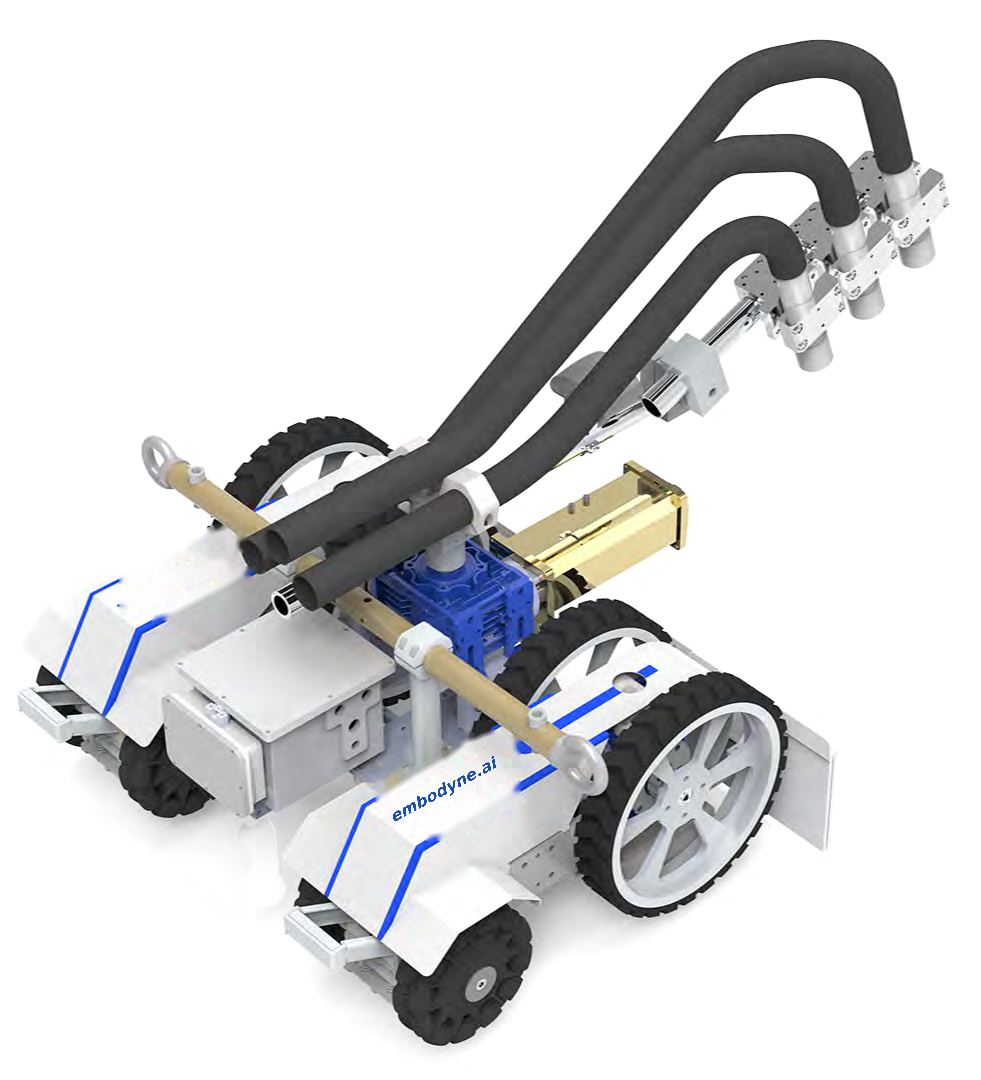

 | Swing-Arm Sandblasting Crawler — M-04 Sandblasting of hulls and tanks to Sa 2.5; the swing arm also accepts hydroblasting heads. | abrasive-mechanical | Blasting width: 50–150 mm Efficiency: 15–60 m²/h | Ship hull & dry dock, Storage tanks |

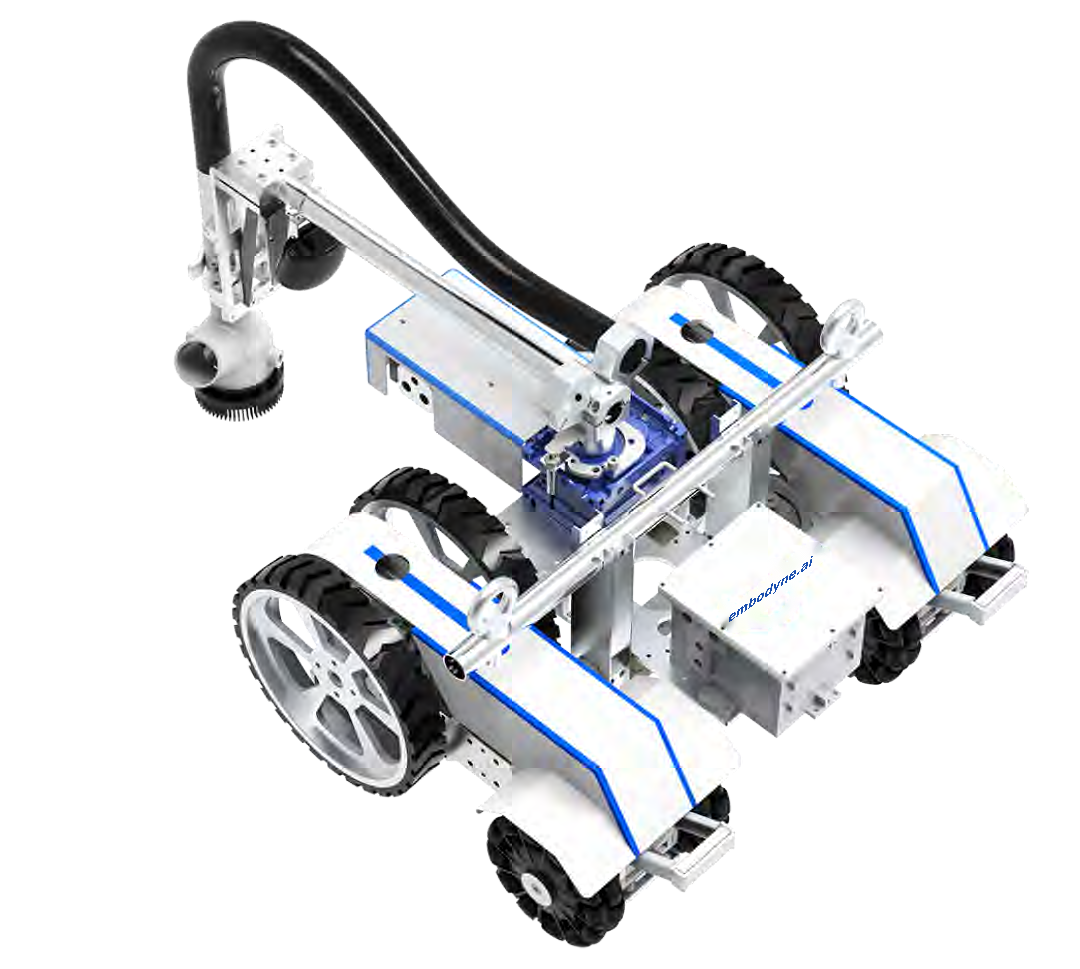

 | Vacuum-Recovery Sandblasting Crawler — M-04 R Dust-free blasting with abrasive recovery and recycling; weld-seam treatment after hull erection. | abrasive-mechanical | Roughness: Ra 50–80 μm (ISO 8503) Work width: 100 mm | Ship hull & dry dock |

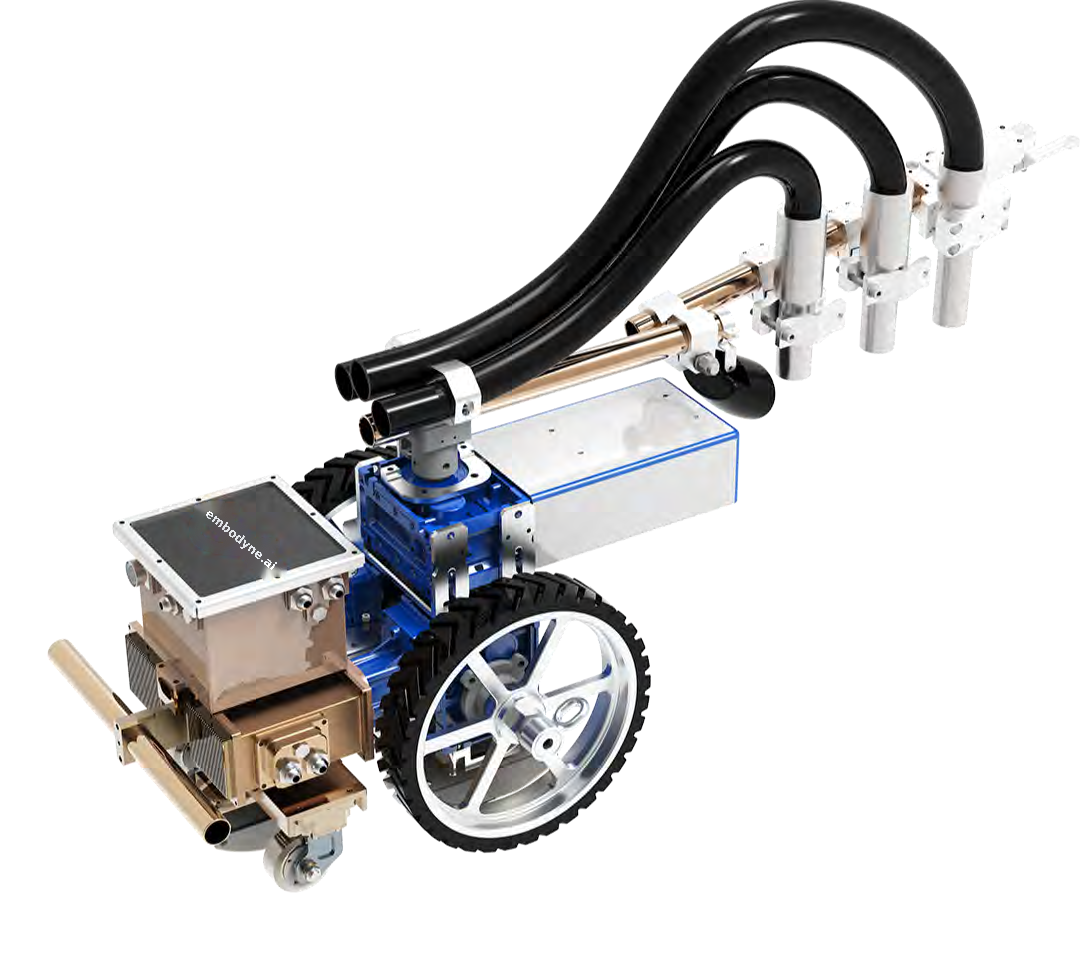

 | Compact Swing-Arm Sandblasting Crawler — MR-04 Compact sandblasting for tank surfaces, edges and narrow spaces with automatic lane change. | abrasive-mechanical | Max speed: 12 m/min Derusting width: 50–100 mm | Storage tanks |

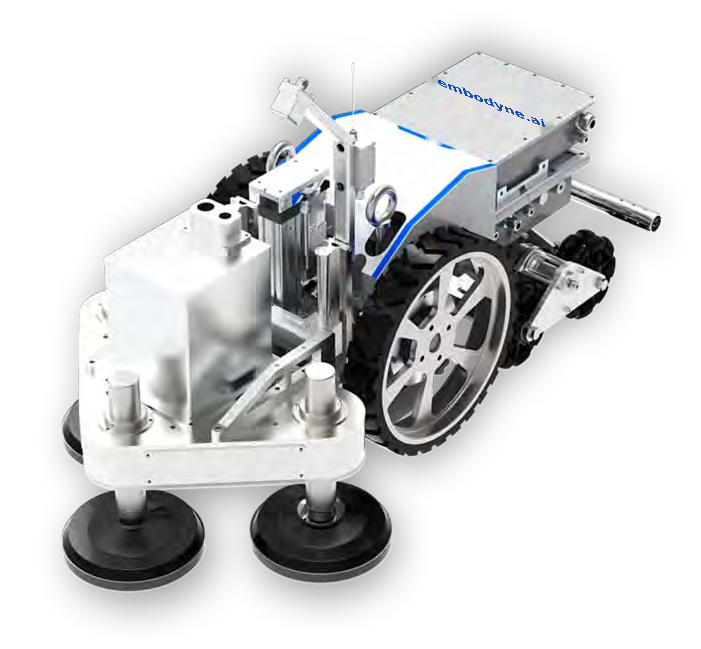

 | Grinding & Sanding Crawler — M-05 Mechanical coating removal and weld-seam grinding on large steel structures. | abrasive-mechanical | Efficiency (surface roughening): 60–300 m²/h Efficiency (grinding): 30–70 m²/h | Ship hull & dry dock |

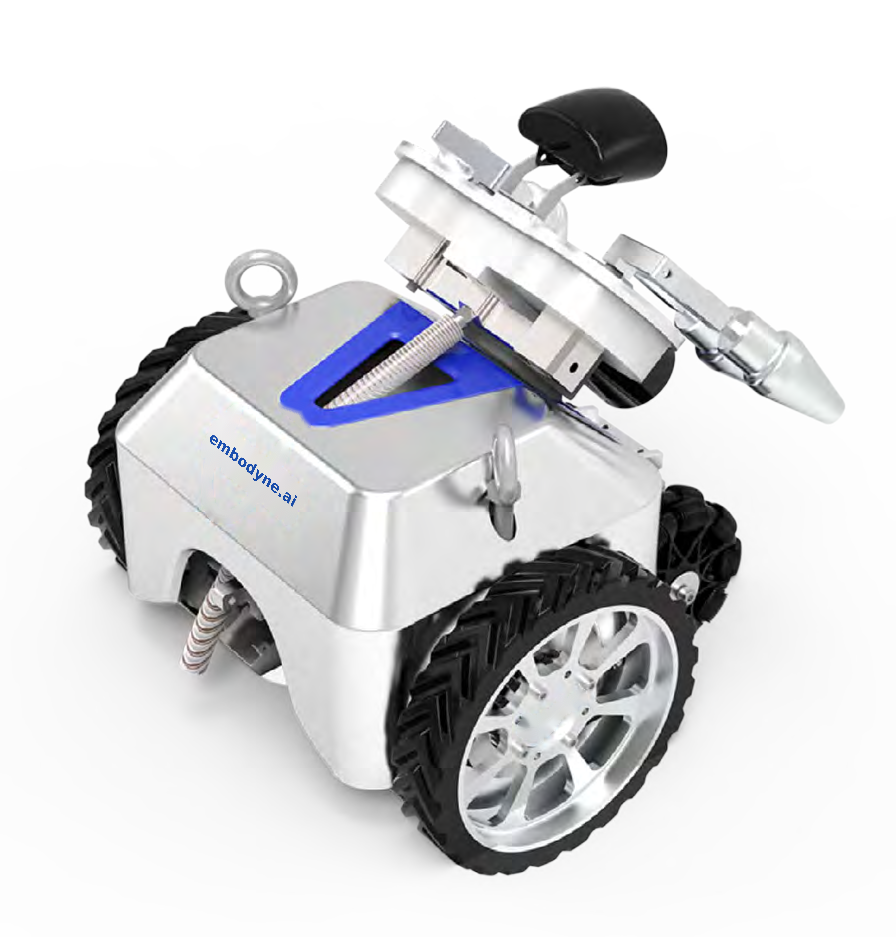

 | Cargo Hold Cleaning Robot — MCH-02 High-pressure water cleaning of bulk-carrier cargo holds, tank shells and hull areas above the waterline. | cleaning-coating-tank | Max pressure: 500 bar Cleaning width: 900 mm | Cargo hold |

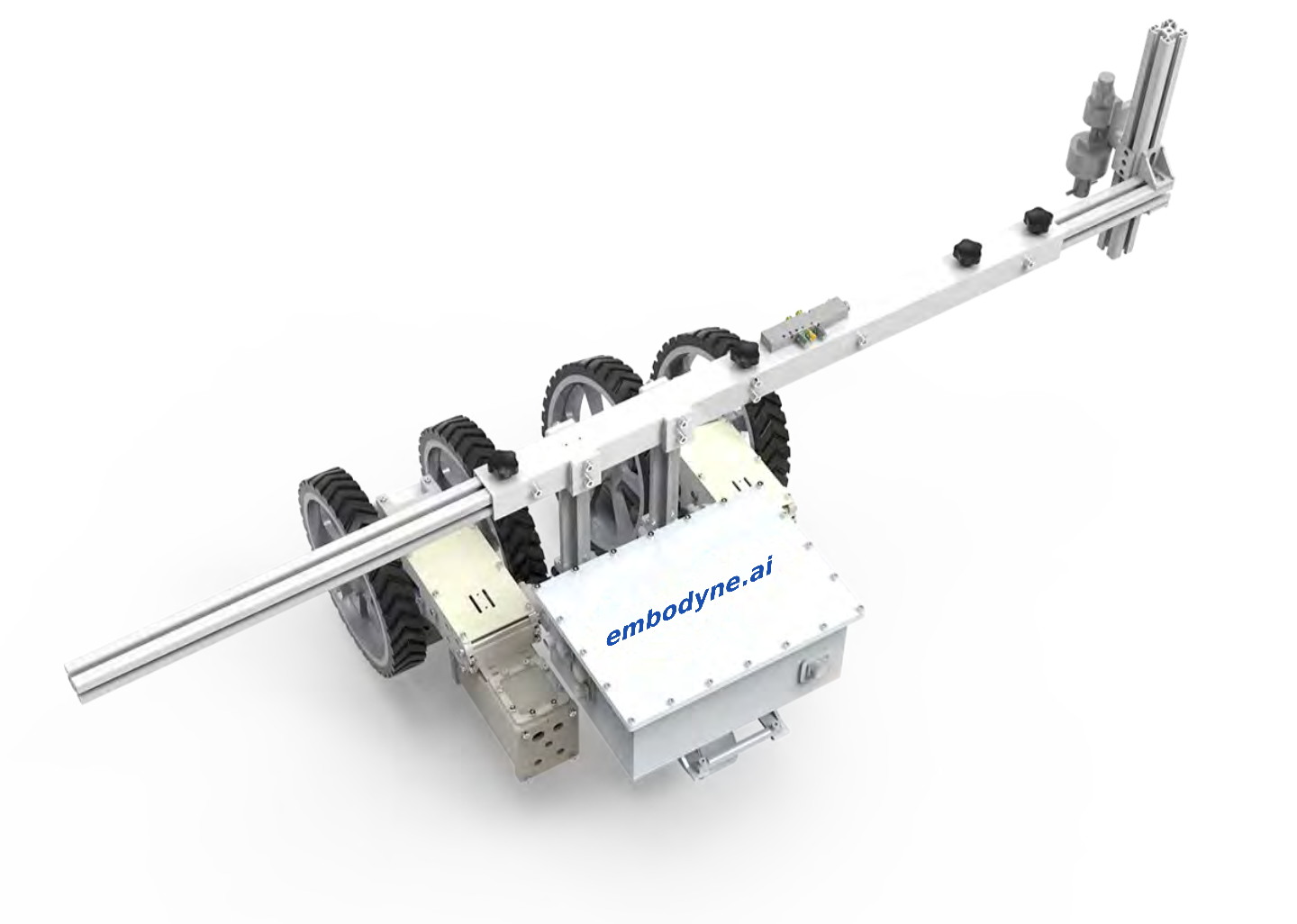

 | Tank Painting Crawler — MSW-02 Spray coating of inner and outer tank surfaces. | cleaning-coating-tank | Max speed: 16 m/min Spray diameter: 300–800 mm | Storage tanks |

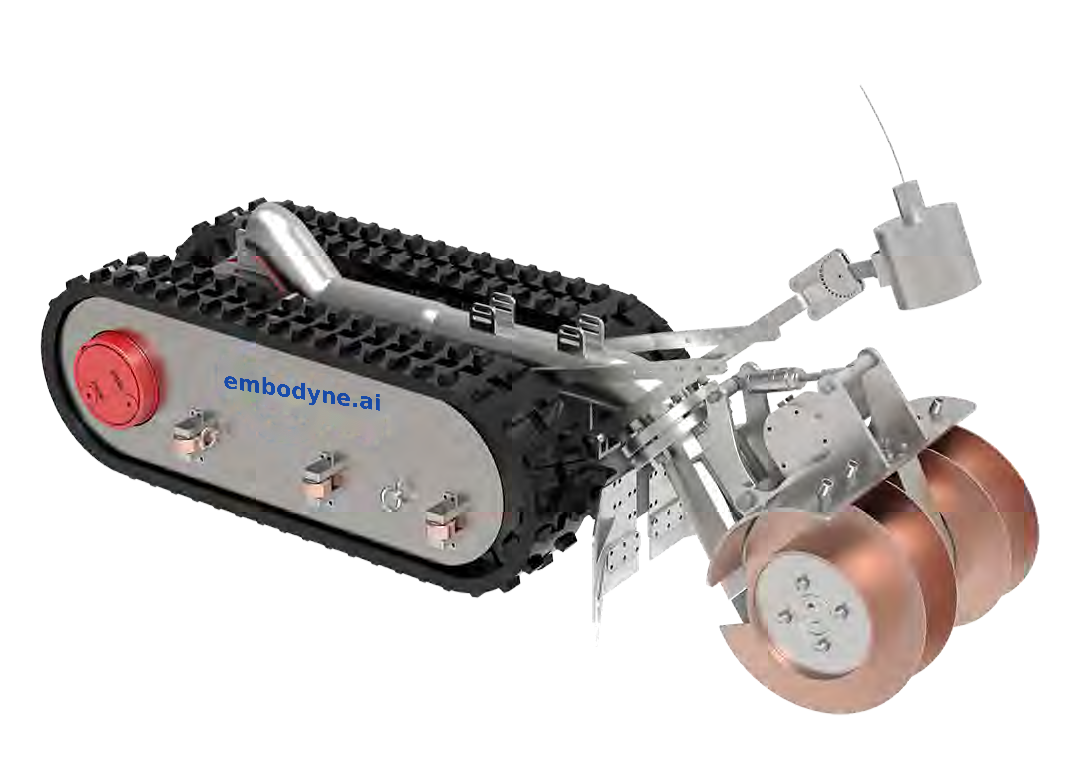

 | Explosion-Proof Sludge Extraction Robot — MSSR-100 Oil-sludge removal from petrochemical tanks with tracked hydraulic drive, vacuum suction and a camera for remote monitoring. | cleaning-coating-tank | Max speed: 12 m/min Climbing ability: 30° | Storage tanks |

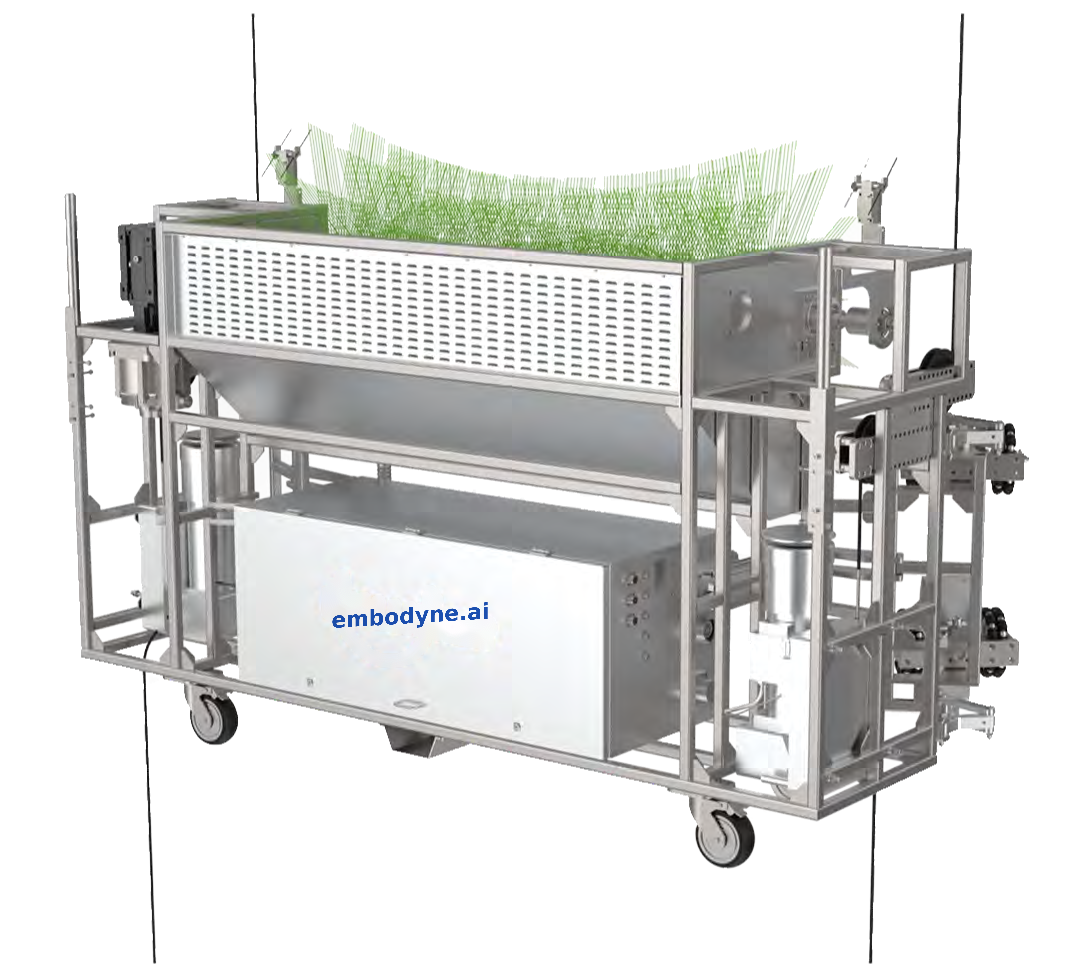

 | Wind Tower Cleaning Robot — MP-05 Removes dirt and oil stains from wind-turbine towers with a brush system, without rope-access technicians. | wind-energy | Max speed: 15 m/min Max working wind speed: 15 m/s | Wind turbine towers |

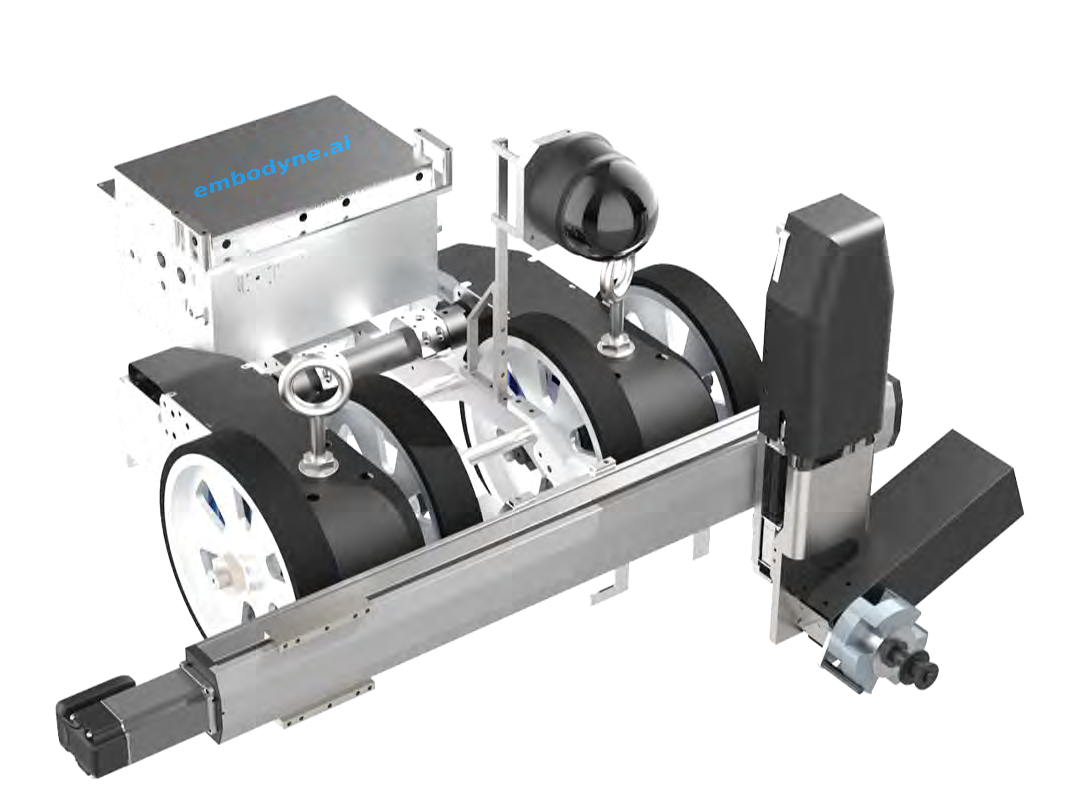

 | Wind Tower Repair Robot — MP-02 Restores wind-turbine tower coatings with sanding and painting modules without shutting down the turbine. | wind-energy | Max speed: 16 m/min Operating height: 150 m+ | Wind turbine towers |

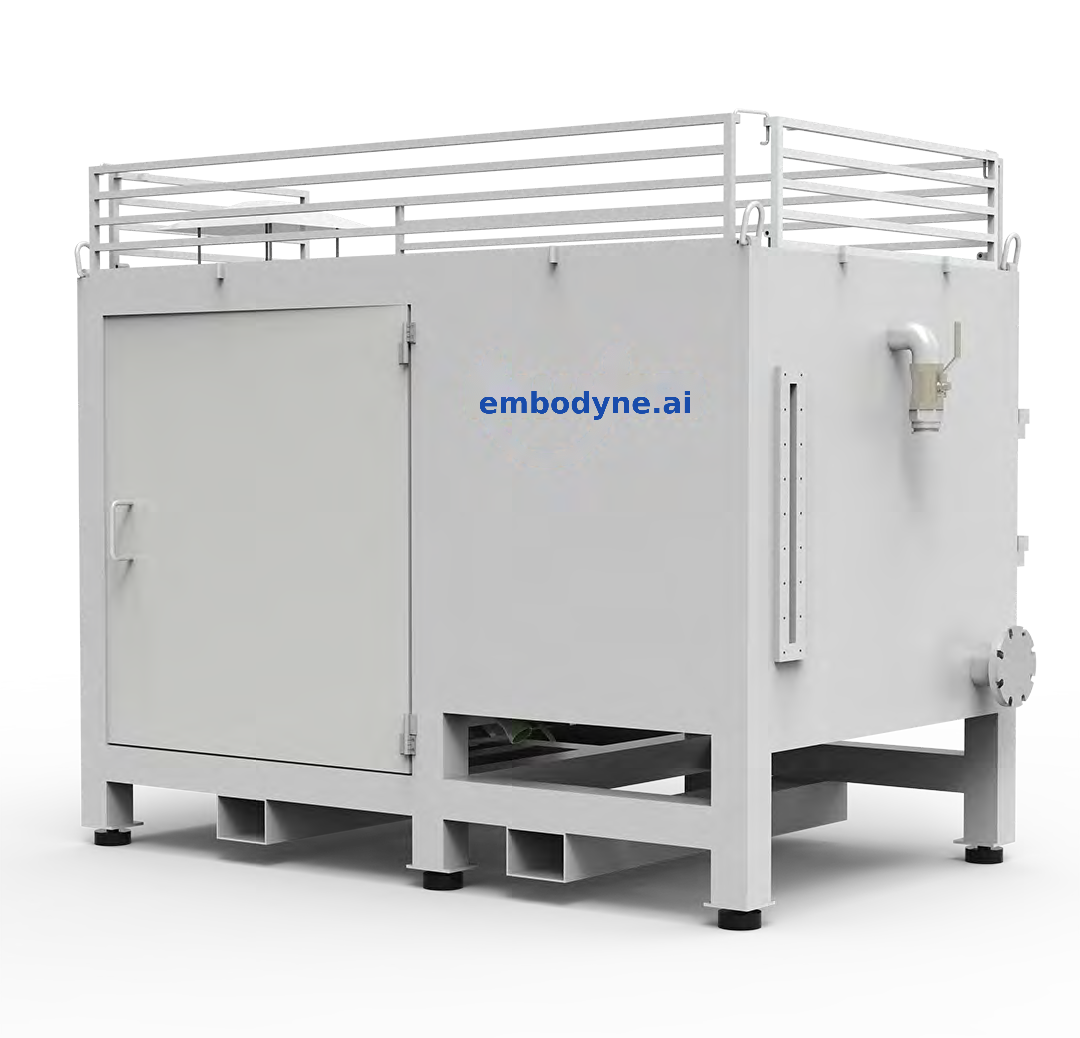

 | Vacuum Wastewater Reclaimer — MSR-04 Collects rust, paint residue and wastewater from UHP blasting robots; one unit per robot. | support-equipment | Max capacity: 2.5 t/h Lift height: 15 m | Ship hull & dry dock, Storage tanks |

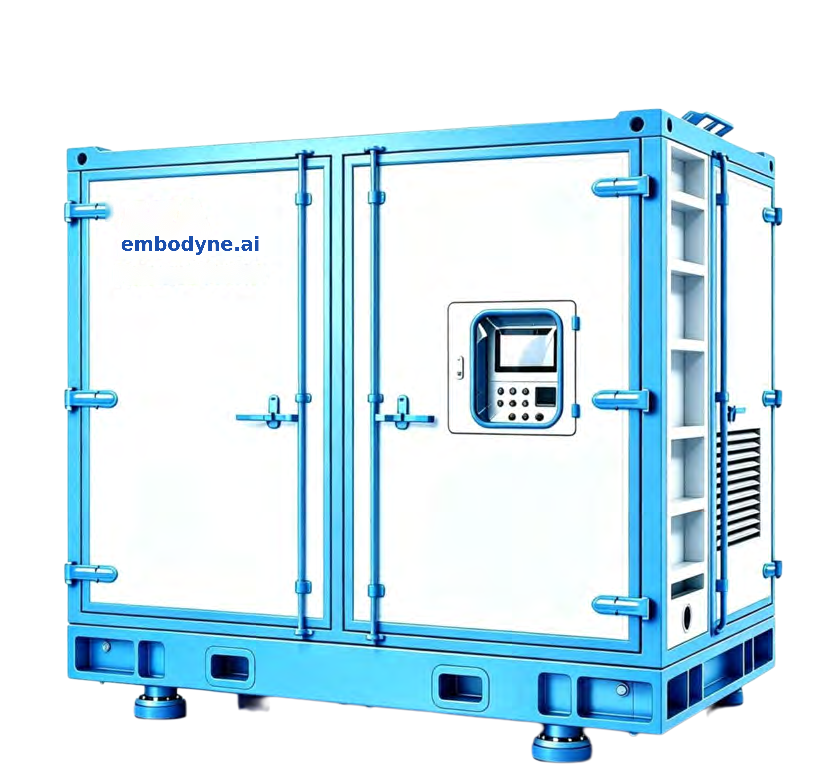

 | 2800 bar UHP Water Pump — MP-28E (electric) / MP-28D (diesel) Containerised UHP pump for robotic hull and tank work, with linked remote control for start/stop, pressure release and pressure/flow adjustment. | support-equipment | Pressure: up to 2800 bar / up to 2800 bar Flow: 38 L/min / 38 L/min | Ship hull & dry dock, Storage tanks |
Industries We Serve
Shipbuilding & Ship Repair
Hull surface preparation in dry dock or alongside: removing old coatings, rust and marine growth before repainting. Robots cover flat bottoms, vertical sides and curved sections, and reduce vessel downtime and scaffolding.
Models: M-06, M-03 PRO, MH-01 PRO, MH-03, M-04, M-04 R, M-05
Bulk Shipping & Cargo Holds
Cleaning cargo holds between cargoes, including corrugated bulkheads, hold frames and sloping tank tops. The robot can be run by the ship's crew.
Models: MCH-02
Oil, Gas, Petrochemical & Storage Tanks
Coating removal, blasting, repainting and sludge removal for storage tanks, including explosion-proof models for hazardous areas.
Support equipment for all UHP robots: MSR-04 vacuum wastewater reclaimer, MP-28E / MP-28D 2800 bar pump.
For technical assistance, equipment selection, or delivery information:
Request a QuoteComplete solution from Meritus
- Equipment selection for your application
- Pre-delivery testing
- Operator training
- Spare parts
- Export documentation
- Delivery to site
Applications
Ship hull & dry dock
Prepare hulls, ship bottoms and decks with robotic UHP hydroblasting, abrasive blasting and mechanical preparation.
Cargo hold
Clean bulk-carrier cargo holds, including corrugated bulkheads, with a dedicated water-cleaning robot.
Storage tanks
Prepare, clean and coat tank surfaces with equipment for tight areas and interior work.
Wind turbine towers
Clean tower surfaces and restore coatings with dedicated wind-tower robots.
Frequently Asked Questions
What is a magnetic crawler robot?
A remote-controlled robot that holds onto steel surfaces with permanent magnets and moves across vertical, horizontal and curved areas, such as ship hulls, tank shells and wind towers, to blast, clean, grind or paint them.
What is UHP hydroblasting?
Ultra-high-pressure water jetting, up to 2800–3000 bar with embodyne.ai robots, that removes old coatings and rust from steel without abrasive, reaching Wa 2.5 cleanliness before recoating.
Do the robots need scaffolding or rope access?
No. The robots grip the steel surface magnetically and are operated remotely from the ground.
Which industries use these robots?
Shipbuilding and ship repair, bulk shipping, oil, gas and petrochemical storage tanks, and wind energy.
What does Meritus provide with the robots?
Equipment selection for the application, pre-delivery testing, operator training, spare parts, export documentation and delivery to site.
How do I get a quotation?
Use the Request a Quote form or email sales@meritustech.com with your asset type, surface area and required finish.
