The pressure relief valve arrived with a calibration certificate. Set pressure 18.6 barg, blowdown 7 percent. Identical to the order. Compliant on paper. At pre-commissioning, the valve started lifting at 16.4 barg. Twelve percent below set.

The investigation took six weeks. The bench-test record from the Chinese workshop had been issued without a witnessed seat tightness test. The set pressure had been adjusted after the calibration was logged. The certificate was real. The data on it was not.

This is not a fraud story. The workshop did not falsify anything intentionally. The seat leakage during the actual test triggered a quick reset that no one logged because no third party was present to require a re-issue of the certificate.

Pre-commissioning across the GCC, LATAM, and offshore West Africa keeps surfacing this same gap on Chinese-supplied safety relief valves, instrument valves, and choke valves. The certificate exists. The witness chain does not.

Three things our team does on every safety valve order from China:

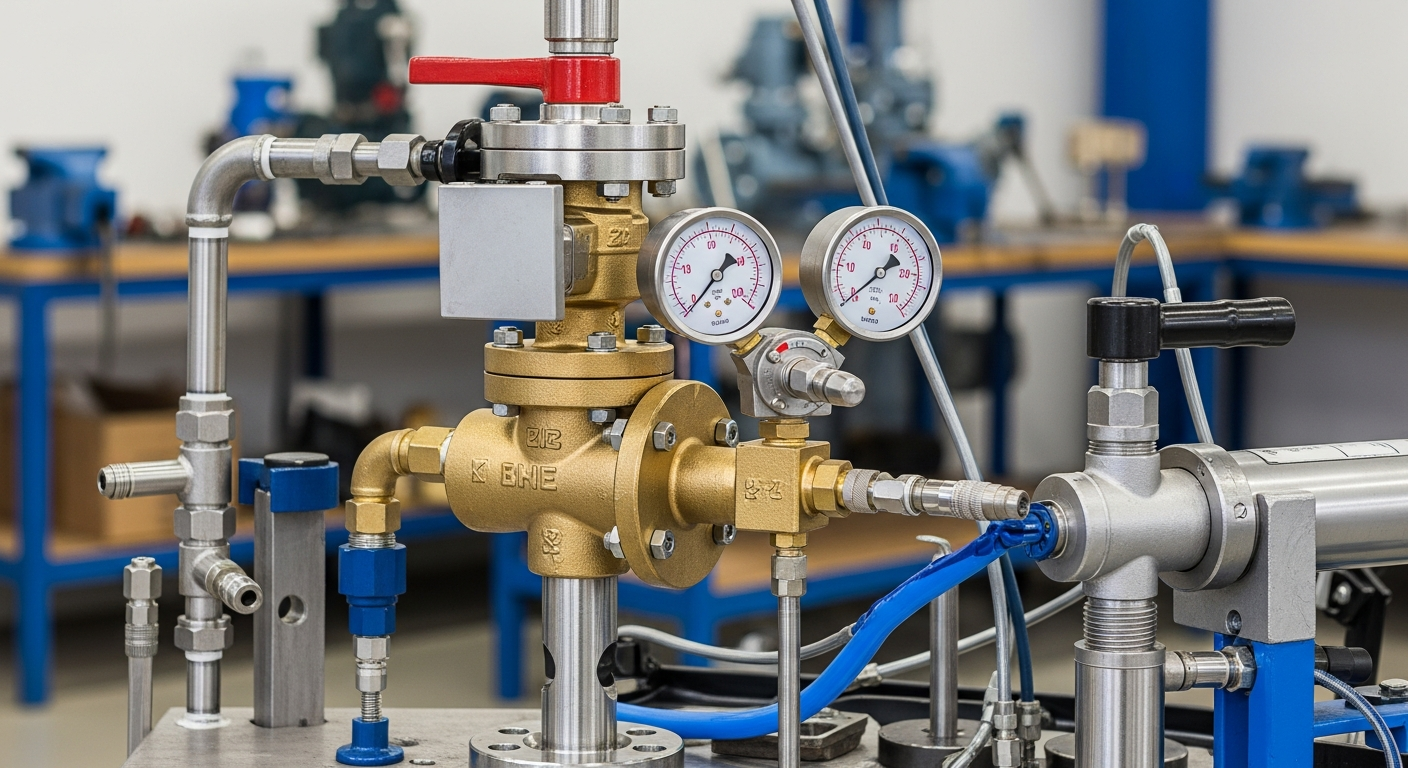

One. Third-party witness at the calibration bench, not just at FAT. ASME PTC 25 or API 527 procedure, whichever the spec requires, with the inspector signing the bench data sheet before it leaves the workshop.

Two. Re-test trigger documentation. If the seat fails during the initial test, the corrective adjustment AND the re-test must both be witnessed. No "we fixed it and re-ran it" undocumented loop.

Three. Serial-number-level matching between the calibration cert, the FAT report, and the physical tag at shipment. Three documents, one valve, identical numbers across all three.

Operators in Saudi Arabia, the UAE, Brazil, Colombia, and Angola have all hit this exact failure mode in the past 18 months. The cost is always the same: weeks of pre-commissioning delay, a hot reorder from a different supplier, and a project schedule that cannot recover the lost time.

If you are sourcing safety relief valves from China for an EPC or operator scope, the witness chain is not optional. It is the certificate.
